3E solution for Ideal Control
The easyEndo™ E-Lite meets enhanced safety with a one-touch firing mechanism. It benefits from improved maneuverability and easy access. It features a lightweight and ergonomic design for comfortable usage.
Product Video
Enhanced Safety
One Touch Firing, Minimal Effort Required
Enhancing precision by minimizing tissue movement, resulting in smoother cutting, improved stapleformation, and ultimately, superior anastomosis.
Tempered Steel Blade
Premium stainless steel blade engineered for smooth cutting, supporting consistent performance and reliable stapling throughout the procedure.
Ergonomic Design

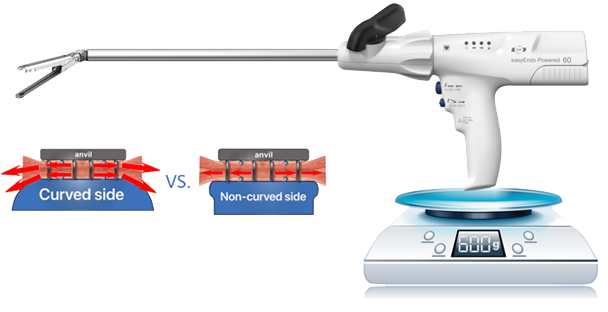

Lightweight
15%-25% less than powered staplers in the industry, reduce pressure on wrist, ensuring comfort during prolonged use.
Comfortable Ergonomic Design
Ergonomic design makes it easier to hold and the immediate and light button feedback ensures comfort when pressing
Economic Operation
Easier Accessibility and Maneuverability

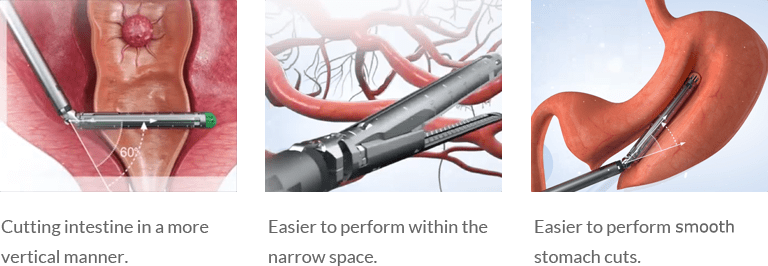

The combination of 120° articulation and shortened jaw length improves accessibility and maneuverability, contributing to efficient operation.
Reducing Potential Injury
All models are accessible via a 12mm trocar, reducing operation costs and the potential for injury by eliminating the need to change between multiple trocars
Device Specifications
| Model | Length L3 (mm) | |

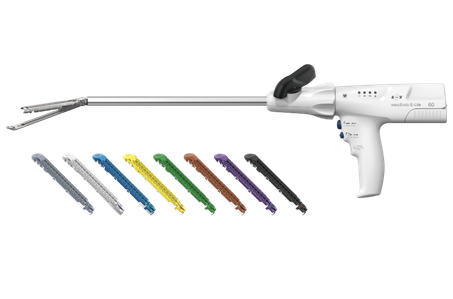

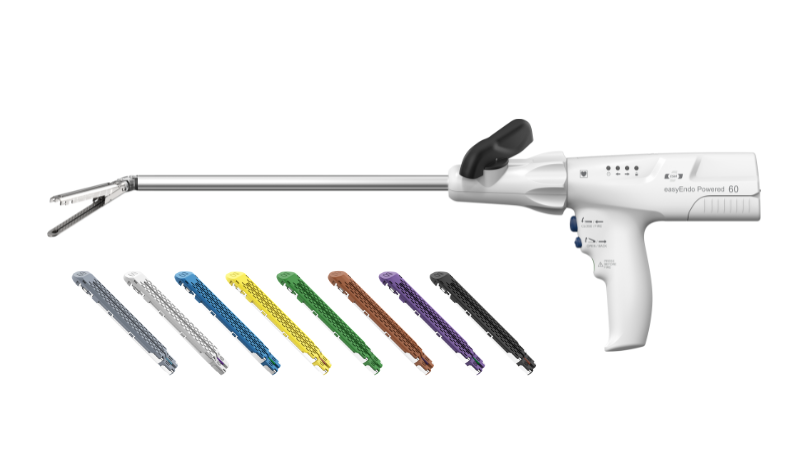

easyEndoTM E-Lite
| P2US45 | 260 |
| P2US45G | 260 | |
| P2UM45 | 350 | |
| P2UM45G | 350 | |
| P2UL45 | 440 | |
| P2UL45G | 440 | |
| P2US60 | 260 | |
| P2US60G | 260 | |
| P2UM60 | 350 | |
| P2UM60G | 350 | |
| P2UL60 | 440 | |
| P2UL60G | 440 |
| Loading Units | |||||
| Catalog Number | Color | Tissue Thickness | Staple Height (mm) | Thickness Range (mm) | |
easyEndoTM E-Lite Cartridge | PN45M | Grey | Thin | 2.0 | 0.75-1.0 |
| PN45W | White | Thin | 2.5 | 1.0-1.5 | |
| PN45B | Blue | Regular | 3.5 | 1.5-2.0 | |
| PN45C | Gold | Medium | 3.8 | 1.7-2.2 | |
| PN45G | Green | Thick | 4.1 | 2.0-2.5 | |
| PN45T | Black | Extra Thick | 4.4 | 2.3-3.0 | |
| PN60M | Grey | Thin | 2.0 | 0.75-1.0 | |
| PN60W | White | Thin | 2.5 | 1.0-1.5 | |
| PN60B | Blue | Regular | 3.5 | 1.5-2.0 | |
| PN60C | Gold | Medium | 3.8 | 1.7-2.2 | |
| PN60G | Green | Thick | 4.1 | 2.0-2.5 | |
| PN60T | Black | Extra Thick | 4.4 | 2.3-3.0 | |
easyEndoTM E-Lite Cartridge with ArcGrip | PN45BC | Blue | Regular | 3.5 | 1.5-2.0 |
| PN45CC | Gold | Medium | 3.8 | 1.7-2.2 | |
| PN45GC | Green | Thick | 4.1 | 2.0-2.5 | |
| PN60BC | Blue | Regular | 3.5 | 1.5-2.0 | |
| PN60CC | Gold | Medium | 3.8 | 1.7-2.2 | |
| PN60GC | Green | Thick | 4.1 | 2.0-2.5 | |
| Catalog Number | Color | Staple Height (mm) | Thickness Range (mm) | |
easyEndoTM E-Lite Cartridge with TS Technology | PN45VM | Brown | 2.0-2.5-3.5 | 0.88-1.5 |
| PN45MT | Purple | 3.5-3.8-4.1 | 1.5-2.25 | |
| PN45XT | Black | 3.8-4.1-4.4 | 2.25-3.0 | |
| PN60VM | Brown | 2.0-2.5-3.5 | 0.88-1.5 | |
| PN60MT | Purple | 3.5-3.8-4.1 | 1.5-2.25 | |
| PN60XT | Black | 3.8-4.1-4.4 | 2.25-3.0 |
*The product specifications set forth on this page are those within the scope of our CE MDR certification. For specifications applicable in markets covered by other certifications, please direct inquiries to your designated sales representative or contact us.
